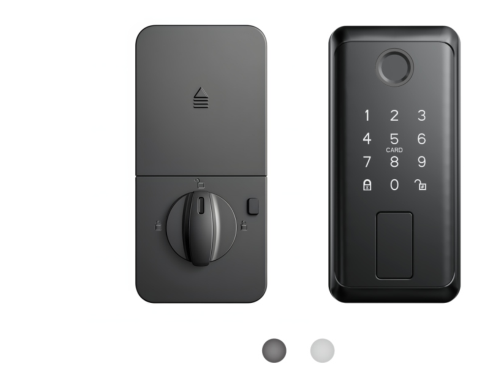

DS05 Deadbolt Smart Lock
Keyless deadbolt lock with fingerprint, password, IC card and mechanical key access for wood and metal entry doors.
- Fingerprint, password, IC card and key access
- 100-user capacity for each unlock method
- Tuya Bluetooth/Wi-Fi or standalone versions
- Fits wood and metal doors (35–55 mm)
- 6 V AA battery power — no hardwiring
- Optional door sensor and OEM/ODM support
Fingerprint + Password + Card
OEM & ODM Support
Request a Quote
Key Features
Multiple Access Options
DS05 supports fingerprint, password, IC card and mechanical key access, giving residents, tenants and staff flexibility.
Connected or Standalone
Choose the version that fits your project: standalone, Tuya app with Bluetooth/Wi-Fi, or Tongtong protocol.
Quick Battery-Powered Install
Powered by 4× AA alkaline batteries at 6 V — no hardwiring required. Fits 35–55 mm doors with 60/70 mm lock-tongue options.
Applications
DS05 is built for residential and light-commercial entry points where simple, keyless deadbolt control is required.
- Single-family and multi-family front doors
- Apartment and rental-unit retrofits
- Commercial offices and meeting rooms
- Wood / Metal doors within 35–55 mm thickness

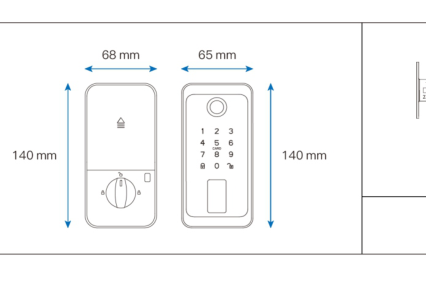

Dimensions & Installation
The deadbolt installs on standard North-American and compatible door preparations. Key fit data from the source documentation:
- Front panel: 68 × 140 mm
- Rear panel: 65 × 140 mm
- Door thickness: 35–55 mm
- Lock tongue: 60/70 mm
Confirm local door preparation and backset before ordering. Installation drawings are provided in the product documentation.
Technical Specifications
All specifications below are taken directly from the authorized product documentation. Nothing has been added or assumed.
| Model | DS05 |
|---|---|
| Product Type | Deadbolt Smart Lock |
| Material | Aerospace aluminum alloy |
| Unlock Methods | Fingerprint, Password, IC Card, Mechanical Key |
| Fingerprint Capacity | 100 |
| Password Capacity | 100 |
| IC Card Capacity | 100 |
| Door Types | Wood / Metal |
| Door Thickness | 35–55 mm |
| Power Supply | 6 V (4× AA alkaline batteries) |
| Voice Prompts | Chinese, English, Spanish, Portuguese |
| Available Versions | Standalone, Tuya (Bluetooth/Wi-Fi), Tongtong |
| Optional | Door sensor |
| Lock Tongue | 60/70 mm |
| Color Box Size | 225 × 162 × 85 mm |
| Unit Weight | 0.83 kg |
| Carton | 470 × 340 × 445 mm (20 pcs) |
| Carton Weight | 17.0 kg |
B2B / OEM & ODM
CaremLock supplies deadbolt smart locks for distributors, installers, property-management groups and brand owners. DS05 can be offered under OEM and ODM arrangements with configuration options including version type, logo and packaging.
Request a project quote for pricing, version mix and lead-time details.
Request DS05 pricing or samples
Share your project requirements and our team will reply with configuration options.
Buyer FAQ
What access methods does DS05 support?
Fingerprint, password, IC card and mechanical key. Each method stores up to 100 entries.
What door thickness will DS05 fit?
The lock is designed for doors 35–55 mm thick. Confirm your door thickness before ordering.
Is an app-connected version available?
Yes. DS05 is available in standalone, Tuya (Bluetooth/Wi-Fi) and Tongtong versions.
Is the door sensor included?
The door-sensor function is supported as an optional add-on, not included by default.
What batteries does DS05 use?
Four AA alkaline batteries supplying 6 V. Battery life is not specified in the source documentation.
